MATERIAL SPECIFICATIONS
Material: 6063 T-6 Aluminum
GENERAL DIMENSIONS
The system can be quickly installed when needed, offering peace of mind during emergencies. Its user-friendly design makes it easier for individuals with limited physical strength to rapidly secure their homes, eliminating the need to carry and place heavy sandbags. Additionally, it removes the hassle of cleanup and disposal after the floodwaters recede, ensuring a more efficient and stress-free flood protection solution.
DURABLE AND LONG-LASTING MATERIALS
- Height: Varies depending on the number of planks installed
- Depth: 3.54” (9 cm)
- Width: 2.36” (6 cm)
- Weight: 2.72 lbs per foot
- Thickness: 0.015” (3.8 mm)
MIDDLE POST (DOUBLE CHANNEL)
- Width: 4.66”
- Depth: 3.94” (9 cm)
- Weight: 5.51 lbs per foot
- Thickness: 0.015” (3.8 mm)
SEALING MATERIAL
Type: EPDM Rubber
BOLTS
- Size: M12, 8.8 mm
PLANKS SPECIFICATIONS
Material: 6063 T-6 Aluminum
PLANK DIMENSIONS
- Height: 7.15” (18.15 cm)
- Width: Custom, based on your required opening size
- Depth: 1.58” (40 mm)
- Wall Thickness: 0.0787” (2 mm)
WEIGHT
- Weight: 1.956 lbs per foot
SEALING STRIP MATERIAL
- Type: EPDM Rubber
MAXIMUM PROTECTION HEIGHT
- Customizable: Adaptable based on the design and layout of the property
Panel Deflection Specifications

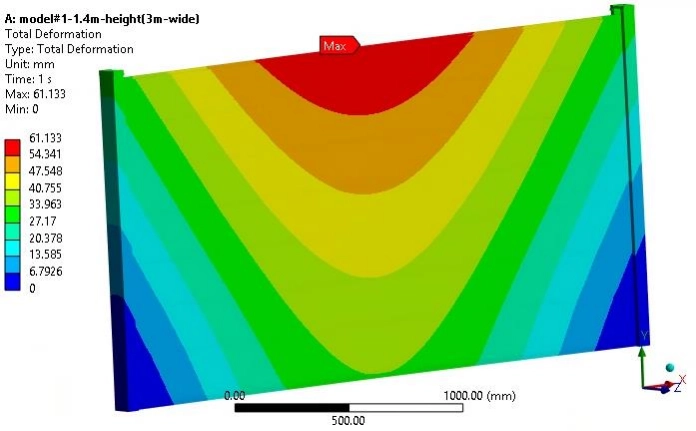

This image shows how a flood panel reacts when water pushes against it. The colors go from blue (no bending) to red (most bending). As you can see, the center of the panel – especially near the top – bends the most. This test was done on a 3-meter-wide panel at 1.4 meters high. The red area shows where the panel moves the most under pressure, while the blue edges show where it stays firm because it’s supported.
The wider the opening, the more pressure the panel has to handle in the middle. That’s why it’s important to request stronger, higher-integrity panels for wider spaces – so they don’t bend too much or risk breaking when water rises.
Our Rubicon panels are carefully engineered to stay strong under pressure, no matter the width of your opening. This means better safety, better performance, and peace of mind during floods.
